| Power Consumption When in Use | 9.5W |
| Power Consumption When Charging | 5 to 15W |
| Charging Port | USB-C |
| Charging Electrical Specifications | 5V, 900mA to 3A |
| Maximum Charging Voltage | 5.25V |
| Battery Capacity | 3200mAh |
| Battery Chemistry | Lithium Polymer |
| Battery Life | 1 Hour |
| Minimum Operating Temperature | 0oC |
| Maximum Operating Temperature | 40oC |
| Power Consumption When in Use | 9W |
| Power Consumption When Charging | 5 |
| Charging Electrical Specifications | 5V, 1A |
| Maximum Charging Voltage | 5V, 900mA to 3A |
| Maximum Charging Voltage | 5.5V |
| Battery Capacity | 3200mAh |
| Battery Chemistry | Lithium Polymer |
| UV Dose | 16mJ/cm2 at 5cm distance in 10 secs |
| Charging Port | USB-C |

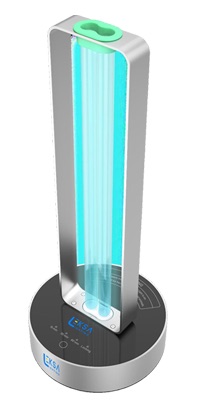

Model No : LEXAFE UVD-1
Power : 36W
Input Voltage : AC220~240V & AC110V
Lamp Head Size : 410±2mm
Tube Base : 2G11
Tube Lifespan 8000H
UV Tube : UVC
Irradiation Area : 1 ㎡-50 ㎡ Start 15 seconds delay start (safe for use)
Timer : 15minutes/30minutes/60minutes
Child Safety Lock : YES
Control Type : Touch Control
Housing Material : Aluminium Alloy
Housing Color : Silver Color
Product Size : Ø197*445mm
Working Temp : -10°— 40°C
Cable Length : 1.6m
Net Weight : 1.5kgs
Plug Type : European, US, UK, 3C
Frequency : 50/60Hz
Wavelength : 254nm
UV Output : 120±3μW/cm2
Ozone : Without Ozone (safe to human)
Net Weight : 1.5 Kgs
Weight per Box : 2.0 Kgs
Box Size : 250x235x490mm

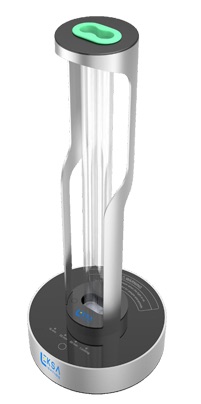

Model No : LEXAFE UVD-2
Power : 36W
Input Voltage : AC220~240V & AC110V
Lamp Head Size : 410±2mm
Tube Base : 2G11
Tube Lifespan 8000H
UV Tube : UVC
Irradiation Area : 1 ㎡-50 ㎡ Start 15 seconds delay start (safe for use)
Timer : 15minutes/30minutes/60minutes
Child Safety Lock : YES
Control Type : Touch Control
Housing Material : Aluminium Alloy
Housing Color : Silver Color
Product Size : Ø197*445mm
Working Temp : -10°— 40°C
Cable Length : 1.6m
Net Weight : 1.5kgs
Plug Type : European, US, UK, 3C
Frequency : 50/60Hz
Wavelength : 254nm
UV Output : 120±3μW/cm2
Ozone : Without Ozone (safe to human)
Net Weight : 1.4 Kgs
Weight per Box : 1.9 Kgs
Box Size : 250x235x490mm

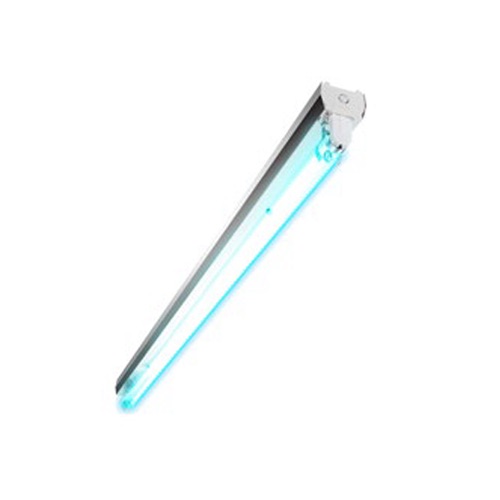

The UV-C batten is designed for the disinfection of surfaces and is suitable for a wide range of applications. The UV-C batten provides universal UV-C irradiance with homogenous distribution. Its disinfection capability is based on wattage used and a specific exposure time for a given distance from that surface. No person should be present at the time of usage, due to high risk of harm to eyes and skin. The performance is enhanced by a highly-reflective and durable aluminum body, which improves its efficacy even further and directs the UV-C light to the to-be-irradiated surfaces. There is a 1- and 2-lamp version available, for both the bare batten and reflector batten. This offers even a greater flexibility.
UV-C effectively inactivates many viruses and germs on directly irradiated surfaces. Moreover, in laboratory testing, Signify’s UV-C light sources inactivated 99% of SARS-CoV-2 virus on a surface with an exposure time of 6 seconds.
Proven, effective disinfection over the useful long lifetime of lamp and luminaire.
Environmentally friendly - no ozone emissions during or after use.
Combined with safeguards such as controlled-access devices, it is used safely.
Can be used in numerous applications.
Lamp configurations possible: 1-lamp or 2-lamps version.
Available with or without reflectors.
Philips T8 TUV lamp included: 36W.
Shortwave UV radiation peak at 253.7 nm (UVC).

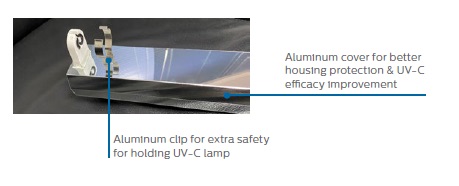

High reflective aluminum housing for better reflectivity and performance.
Various mounting options.
Complies with all applicable regulations and standards
The batten disinfects surfaces that are directly exposed to the UV-C light, emitted by the UV-C batten. The batten may not be used in the presence of any persons or animals.
Retail Keep shopping carts, shelves and counters free from contamination.
Hair and Disinfect client rooms, operating floor, mirrors, chairs surfaces,
beauty salons and other sensitive areas.
Schools Disinfect classroom walls, floors, desks and surfaces.
Offices Neutralize work rooms, meeting spaces and corridors.
Banking Disinfect counters, cash machines and work surfaces.
Hospitality Disinfect guest rooms, reception areas and health facilities.
Food outlets Eliminate bacteria on preparation surfaces and equipment.
Washrooms Disinfect vanity units, basins and mirrors.
Transportation Disinfect passengers’ waiting spaces.
DANGER: Risk Group 3 UV product. Like any disinfection system, UV-C lamps and devices must be installed and used in the correct way. Direct exposure to UV-C can be dangerous and result in a sunburn-like reaction to the skin and serious damage to the cornea. As UV-C is invisible to the eye, the UV-C batten must be installed together with adequate safeguards to ensure that the UV-C batten can be operated in a safe way. The UV-C battens are only to be used as components in a system that consists of adequate safety safeguards such as, but not limited to, those indicated in the mounting instructions and/or user manuals.
Direct exposure to UV-C is dangerous. Philips UV-C products must only be sold through qualified partners and installed by professionals according to our stringent safety and legal requirements. Our UV-C products are not meant to be used in applications or activities which may cause and/or lead to death, personal injury and/or damage to the environment.
The UV-C battens’ effectiveness in the inactivation of certain viruses, bacteria, protozoa, fungi or other harmful micro-organisms is as described above under the heading “Benefits”. Signify and its group of companies do not promise or warrant that the use of the UV-C battens will protect or prevent any user from infection and/or contamination with any viruses, bacteria, protozoa, fungi, illness or disease. The UV-C battens are not approved for, are not intended and must not be used as medical devices, as such term may be defined under the applicable laws of the countries in which the battens are made available. In addition to and without limitation of any exclusions or limitations of liability of Signify and its group of companies as set forth in any agreement for the sale, distribution or otherwise making available of the UV-C battens, Signify and its group of companies shall have no responsibility or liability whatsoever for any claim or damage that may arise from or relate to any use of the UV-C battens outside of their intended use or contrary to their installation and operation instructions, each as described in this document under the heading “Application”, the user manuals and/or the mounting instructions.
| 12NC | Description | Dimension (mm) | Weight (KG) |
|---|---|---|---|
| 911401524471 | TMS160C 1X36W TUV SLV/6 | 1230*56*80 | 1,00 |
| 911401524571 | TMS160C 1X36W TUV SLV/6 R | 1230*162*80 | 1,90 |
| 911401524871 | TMS160C 2X36W TUV SLV/6 | 1230*105*80 | 1,14 |
| 911401524971 | TMS160C 2X36W TUV SLV/6 R | 1230*162*80 | 2,04 |
| Input voltage, Frequency | 220-240V~(±10%), 50/60Hz |
| Power Factor (full load) | ≥ 0.9 |
| Electrical class | Class I |
| External wiring | terminal block inside with a hole on the casing |
| Lamp holder type | G13 ([ Medium Bi-Pin Fluorescent]) |
| Ballast | 913713031566 HF-P 136 TL-D III 220-240V 50/60 Hz 913713031666 HF-P 236 TL-D III 220-240V 50/60 Hz |
| Housing material | SPCC, thickness = or > 0.4mm |
| Top cover | Anodize aluminum sheet, Thickness 0.4 mm |
| IP protection | IP20 |
| IK protection | IK02 |
| Installation | Surface & Suspended mounting |
| Working temperature | -10°C ~45°C |
| Sustainability | China RoHS 2.0 & REACH |
| Approbation | CCC/CB/EMC/CE/SAA/IEC60598 (Safety) |
| Packaging | sell in kit, (6 Batten + 6 Lamp) |
| Lifetime | 25,000 hours |
| Switch cycle | >35,000 times (daily on and off 10 times) |
| warranty | 1 year |
| Lamp type | Philips TUV T8 36w SLV/6 (12NC 928048604003) |
| Mercury (Hg) Content (Nom) | 2 Mg |
| Lamp Effective Lifetime | 9000 Hrs |
| Net Weight | 135.00 Gm |
| Power Rated | 36W |
| UV-C Radiation at 100 hr | 15.0 W |
| Color Code | TUV |
| Depreciation at Useful Lifetime | 10% |
| Full Product Name | Lamp Current | Voltage | Power | Order Code |
|---|---|---|---|---|
| A | V | W | GPC | |
| TMS160C 1X36W TUV SLV/6 | 0.18 | 220-240 | 36 | 911401524471 |
| TMS160C 2X36W TUV SLV/6 | 0.36 | 220-240 | 2x36 | 911401524871 |
| TMS160C 1X36W TUV SLV/6 R | 0.18 | 220-240 | 36 | 911401524571 |
| TMS160C 2X36W TUV SLV/6 R | 0.36 | 220-240 | 2x36 | 911401524971 |
| Full Component Name | UV-C Radiation | Order Code |
|---|---|---|
| W | GPC | |
| TMS160C 1X36W TUV SLV/6 | 14 | 911401524471 |
| TMS160C 2X36W TUV SLV/6 | 28 | 911401524871 |
| TMS160C 1X36W TUV SLV/6 R | 12.5 | 911401524571 |
| TMS160C 2X36W TUV SLV/6 R | 24 | 911401524971 |
Ensure your family's safety with an easy to use device, that disinfects almost anything within minutes.
UV-C is found within 100-280 nm range. In the graph it can be seen that germicidal action is maximized at 265 nm with reductions on either side. Philips Low pressure UV-C lamps, used in Philips
UV-C lamps used in UV-C Disinfection system, have their main emission at 254 nm where the action on DNA is 85% of the peak value and 80% on the IES curve. As a result, our germicidal lamps are extremely eective in breaking down the DNA of micro-organisms. This means that they cannot replicate and cause disease.
Reliable disinfection
Easy and cost eective
Defeats micro-organisms
Protects against micro-organisms
Environment Friendly
Eective against all germs
Disinfects without any use of chemicals
Quick & easy disinfecton
