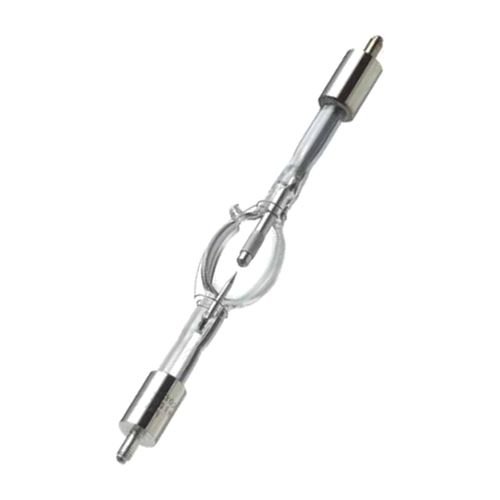

300 W xenon short-arc lamp
| Brand | Ushio |
|---|---|
| Ushio item code | 5000346 |
| Lamp type | Xenon short-arc, ozone-free |
| Wattage | 300 W |
| Lamp voltage | 20 V |
| Lamp current | 15.0 A |
| Arc gap | 2.6 mm |
| Luminous flux | 7000 lm |
| Average life | 900 h |
| Burning position | Vertical ±30° (V30) |
| Terminals | 10-32 UNF threaded |
| Overall length | 174 mm |
| Contact-to-contact | 150 mm |
| Diameter | 25 mm |
Typical use: standard-daylight sources, spectral luminosity and high-luminosity optical measurement, microscopes and medical equipment.

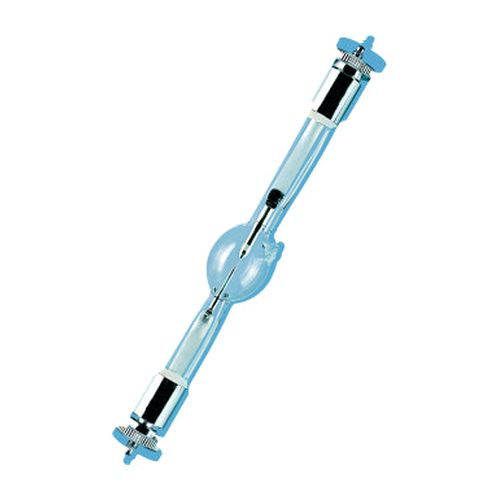

150 W xenon short-arc lamp
| Brand | Osram (now Ushio INE) |
|---|---|
| EAN | 4050300508788 |
| Lamp type | Xenon short-arc, ozone-free (OFR) |
| Wattage | 150 W nominal (125–180 W range) |
| Lamp voltage | 15–18 V (initial) |
| Lamp current | 8.5 A DC |
| Electrode gap | 2.0 mm (cold) |
| Luminous flux | 2900 lm |
| Colour temperature | approx. 6000 K |
| Average life | 3000 h vertical / 1200 h horizontal |
| Burning position | s15 — anode (+) on top when vertical |
| Bases | SFc12-4 anode, SFcX12-4 cathode |
| Overall length | 150 mm |
| Cooling | Forced |
Typical use: solar simulation; also endoscopy, microscopy, fibre-optic illumination, imaging and scanning.
Specifications from the manufacturers’ published data. Check them against your simulator’s manual before ordering.
Don’t see your lamp? Search by part number — we supply more xenon lamps than this page lists.
The code is on the old lamp or its box, or in the simulator’s manual. We’ll confirm the match and quote from Mumbai.
