Soft-glass germicidal lamps (UVC)

UVC germicidal lamps emit ultraviolet at 253.7 nm with excellent germicidal effect. They share the structure and electrical characteristics of standard fluorescent lamps but use UV-transmitting glass, and are used to sterilise air, surfaces, and water or liquids. A wide selection of sizes, shapes and UV outputs is available.

Sankyo Denki — Japan

Type	Wattage	Length	Rated life
G6T5	6 W	210 mm	6000 hours
G8T5	8 W	1 ft	6000 hours
G11T5	11 W	210 mm	6000 hours
G15T8	15 W	1.5 ft	8000 hours
G18T8	18 W	2 ft	8000 hours
G25T8	25 W	1.5 ft	8000 hours

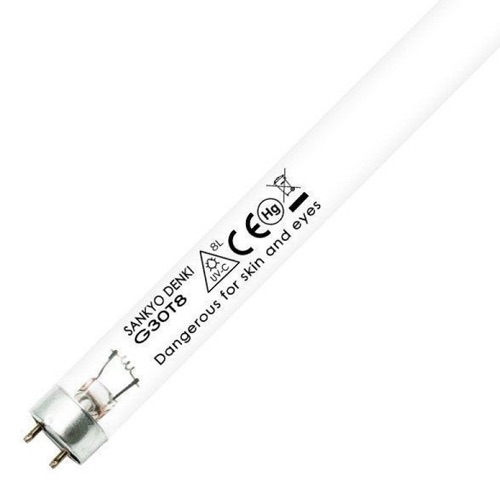

G30T8	30 W	3 ft	8000 hours
G36T8	36 W	4 ft	8000 hours

Philips / Signify

Type	Wattage	Length	Rated life
TUV 4W	4 W	136 mm	6000 hours
TUV 6W	6 W	210 mm	9000 hours

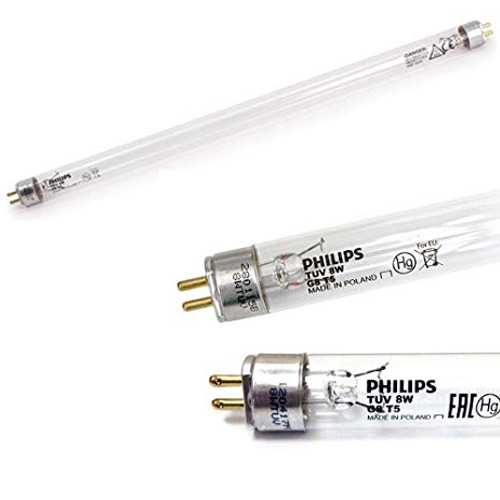

TUV 8W	8 W	1 ft	11000 hours
TUV PLS 9W 4PIN	9 W	145 mm	9000 hours
TUV 11W	11 W	210 mm	11000 hours
TUV 15W	15 W	1.5 ft	9000 hours
TUV 16W	16 W	1 ft	11000 hours
TUV 20W	20 W	400 mm	11000 hours
TUV 20W 4PIN	20 W	438 mm	11000 hours
TUV 25W	25 W	1.5 ft	9000 hours
TUV 25W 4PIN	25 W	556 mm	9000 hours
TUV 30W	30 W	3 ft	9000 hours
TUV 36W SLV	36 W	4 ft	9000 hours
TUV 36W T5 4PIN SINGLE END	39 W	843 mm	9000 hours
TUV 36W T5 SINGLE PIN	39 W	843 mm	9000 hours
TUV PLL 36W / 4PIN	36 W	410 mm	9000 hours
TUV 36W HO-T5 4PIN SINGLE END	75 W	843 mm	9000 hours
TUV 75W HO	75 W	4 ft	9000 hours
TUV 130W Amalgam XPT SE	130 W	842 mm	12000 hours
TUV 325W Amalgam XPT SE	325 W	1582 mm	12000 hours

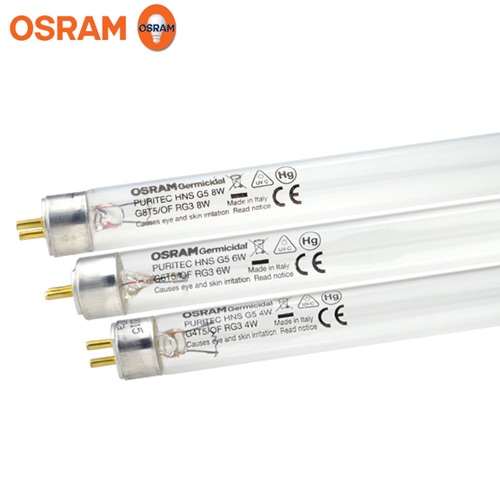

Osram

Type	Wattage	Length	Rated life
HNS 4W	4 W	155 mm	6000 hours
HNS 8W	8 W	1 ft	9000 hours
HNS 11W	11 W	210 mm	9000 hours
HNS 15W	15 W	1.5 ft	9000 hours
HNS 16W	16 W	1 ft	9000 hours
HNS 16W 4P	16 W	320 mm	9000 hours
HSN 20W 4P	20 W	430 mm	9000 hours
HSN 25W	25 W	1.5 ft	9000 hours
HNS 30W	30 W	3 ft	9000 hours
HNS 36W	36 W	4 ft	9000 hours
HNS 36W 4P	36 W	843 mm	9000 hours
HNS S 11W PLS	11 W	235 mm	8000 hours
HNS L 18W PLL	18 W	214MM	9000 hours
HNS L 24W PLL	24 W	314.5 mm	9000 hours
HNS L 36W PLL	36 W	410 mm	9000 hours
HNS L 55W PLL	55 W	533 mm	9000 hours
HNS L 95W PLL	95 W	533 mm	9000 hours

Light Sources Inc., USA / LightTech

Type	Wattage	Length	Rated life
LTC 15W T8	15 W	436 mm	9000 hours
LTC 18W T8	17 W	588 mm	9000 hours
LTC 20 T5	20 W	430 mm	9000 hours
LTC 21 T5	21 W	430 mm	9000 hours
LTC 30 T8	30 W	3 ft	9000 hours
LTC 36 T8	36 W	4 ft	9000 hours
G36T5/4P	36 W	843 mm	9000 hours
LTC 58 T8	58 W	1500 mm	9000 hours

Light Sources Inc. — USA

Quartz-glass germicidal lamps (UVC)

Quartz-glass germicidal lamps, used mainly for industrial water sterilisation, imported from Light Sources Inc., USA — the largest manufacturer of quartz-glass germicidal and amalgam lamps.

Slimline germicidal lamps (single pin)

Type	Wattage	Length	Rated life
G36T5L/SL	41 W	843 mm	16000 hours
GSL 893T5L/SL	44 W	893 mm	16000 hours
GHO893T5L/SL (HIGH OUTPUT)	95 W	893 mm	16000 hours
G64T5L/SL	75 W	1554 mm	16000 hours

Preheat-start, single-ended (4-pin one side)

Type	Wattage	Length	Rated life
GPH212T5VH/4P	10 W	212 mm	16000 hours
GPH212T5L/4P (HERAEUS)	10 W	212 mm	16000 hours
GPH356T5L/4P	19 W	346 mm	16000 hours
GPH436T5L/4P	21 W	436 mm	16000 hours
GPH436T5VH/4P	21 W	436 mm	16000 hours
GPH533T5L/4P	29 W	533 mm	16000 hours
GPH843T5L/4P	41 W	843 mm	16000 hours
GPH843T5L/4P (SHATTER PROOF)	41 W	843 mm	16000 hours
GPH843T5VH/4P	41 W	843 mm	16000 hours
GHO36T5L/4P (HIGH OUTPUT)	90 W	846 mm	16000 hours
GHO36T5VH/4P (HIGH OUTPUT)	90 W	846 mm	16000 hours
GHO893T5L/4P (HIGH OUTPUT)	95 W	893 mm	16000 hours
GHO1200T5L/4P (HIGH OUTPUT)	105 W	1200 mm	16000 hours
GHO1554T5L/4P (HIGH OUTPUT)	130 W	1554 mm	16000 hours
GPHVA843T5L/4P (UNIVERSAL PELLET AMALGAM)	105 W	843 mm	16000 hours
GPHA843T6L/4P (SPOT AMALGAM)	127 W	843 mm	16000 hours

Preheat-start, double-ended (mini bi-pin)

Type	Wattage	Length	Rated life
GHP843T5L	41 W	843 mm	16000 hours
GPH436T5L	21 W	436 mm	16000 hours
GPH356T5L	19 W	345 mm	16000 hours
G8T5L	8 W	287 mm	9000 hours

Arklite 4-pin quartz germicidal lamps

Type	Wattage	Length	Rated life
GPH212T5L/4P	10 W	212MM	9000 hours
GPH436T5L/4P	21 W	436 mm	9000 hours
GPH533T5L/4P	25 W	533 mm	9000 hours
GPH609T5L/4P	30 W	609 mm	9000 hours
GPH692T5L/4P	31 W	682 mm	9000 hours
GPH843T5L/4P	36 W	842 mm	9000 hours
GHO436T5L/4P (HIGH OUTPUT)	48 W	436 mm	9000 hours
GPH1554T5L/4P (HIGH OUTPUT)	64 W	1554 mm	9000 hours
GHO36T5L/4P (HIGH OUTPUT)	75 W	843 mm	9000 hours
GHO893T5L/4P (HIGH OUTPUT)	95 W	893 mm	10000 hours
GHO1200T5L/4P (HIGH OUTPUT)	105 W	1200 mm	10000 hours
GHO1554T5L/4P (HIGH OUTPUT)	130 W	1554 mm	10000 hours
GHO64T5L/4P (HIGH OUTPUT)	155 W	1554 mm	9000 hours
GPHA1554T6L/4P (AMALGAM)	260 W	1554 mm	9000 hours
GPH212T5VH/4P-ZW10D15Y-Z212 (OZONE PRODUCING)	10 W	212 mm	9000 hours
GPH436T5VH/4P (OZONE PRODUCING)	21 W	436 mm	9000 hours
GPH842T5VH/4P (OZONE PRODUCING)	36 W	842 mm	9000 hours

Zapper — UV water steriliser for tanks & cold storage

What do ultraviolet rays do?

Ultraviolet light, a natural part of sunlight, is a reliable, efficient and environmentally friendly solution for water disinfection. A UV radiator at 254 nm causes immediate death to organisms and destroys their ability to survive and reproduce — 99.99% destruction of bacteria and viruses.

It saves lives

Every five minutes, 630 children die from drinking dirty water.
Contaminated drinking water kills 3.8 million children a year.
Most countries lack the luxury of safe piped water.
A typical family spends an hour a day boiling drinking water.

Water is as precious as the air we breathe. As population rises, demand for safe, clean water and air increases, while pollution from micro-organisms, bacteria and viruses grows. A lack of safe water contributes to around 80% of diseases and deaths in the developing world; our UV lamp systems provide safe drinking water and air cost-effectively.

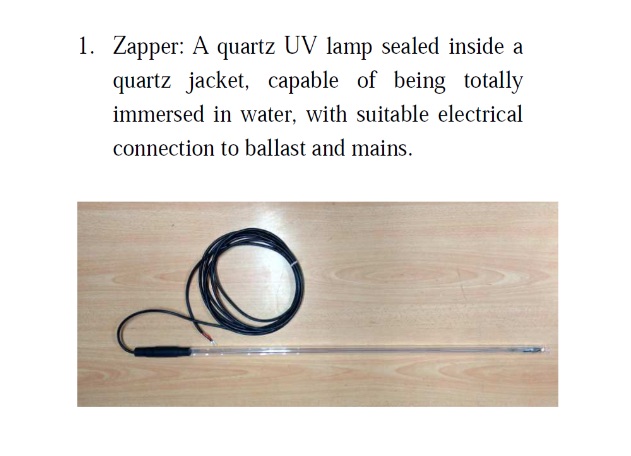

The submersible ultraviolet system

Hiten Techno’s zapper is a system for water-storage tanks that can be submersed in the tank and used in cold storage.

Key features

Disinfects the air space and surfaces above the water, and the liquid contents.
Irradiates contents with germicidal UV, without heat or chemicals.
Germicidal UV lamps rated for 10,000 hours effective life.
Quick lamp change and fused-quartz sleeve.
Most models mount vertically or horizontally in the tank.
Mount into the tank (submerged) or suspend from the top (partially immersed).
Can be mounted on ceilings or side walls of cold-storage rooms.
State-of-the-art electronic ballast.

Type	Length
ZAPPER 20W	About 1 ft
ZAPPER 36W	About 3 ft
ZAPPER 48W	About 2 ft
ZAPPER 75W	About 3 ft

Black-light lamps (BL)

Black-light lamps emit 369 nm (UV-A), used for insect traps, plate exposure, adhesive curing, rubber-stamp making and photochemical reactions. Imported from Hitachi, Japan.

Type	Wattage	Length	Rated life
HITACHI, JAPAN F4T5/BL	4 W	136 mm	3000 hours
F4T5/BL (MOOLIM KOREA)	4 W	136 mm	3000 hours
HITACHI, JAPAN F6T5/BL	6 W	210 mm	4000 hours
PHILIPS ACTINIC BL TL-D TL 6W/10	6 W	210 mm	5000 hours
HITACHI, JAPAN F8T5/BL	8 W	1 ft	5000 hours

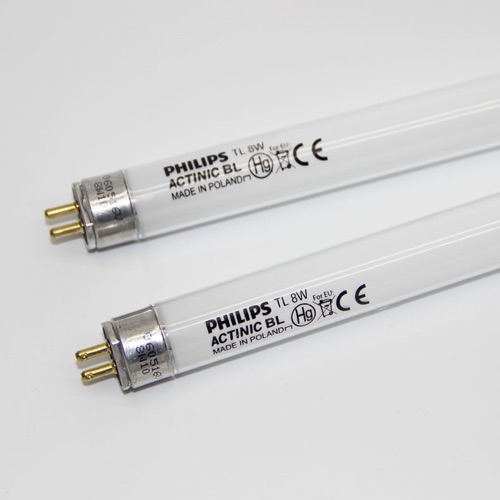

PHILIPS ACTINIC BL TL-D 8W/10	8 W	1 ft	5000 hours
HITACHI, JAPAN F15T8/BL	15 W	1.5 ft	5000 hours
PHILIPS ACTINIC BL TL-D 15W/10	15 W	1.5 ft	5000 hours
PHILIPS ACTINIC BL TL-D 15W/10 (SHATTER PROOF)	15 W	1.5 ft	9000 hours

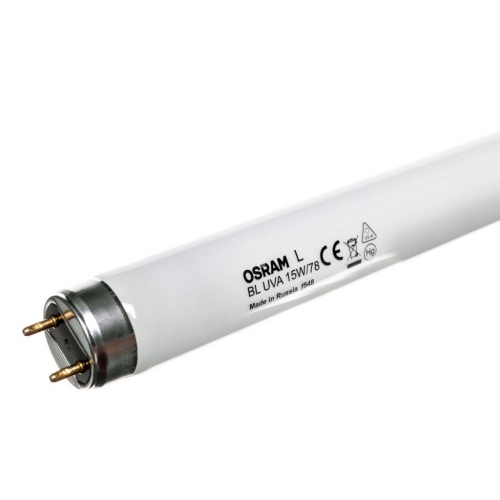

OSRAM L BLUE UVA 15W/78	15 W	1.5 ft	5000 hours

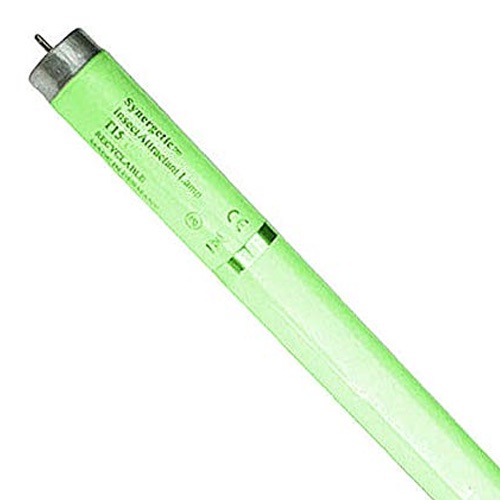

SYNERGETIC-GREEN TGX15-18	15 W	1.5 ft	8000 hours
SYNERGETIC-GREEN TGX15-18S (SHATTER PROOF)	15 W	1.5 ft	8000 hours
PHILIPS ACTINIC BL TL-D 18W/10	18 W	2 ft	9000 hours
PHILIPS ACTINIC BL TL-D 18W/10 (SHATTER PROOF)	18 W	2 ft	9000 hours
OSRAM L BLUE UVA 18W/78	18 W	2 ft	9000 hours
MASTER ACTINIC BL TL-D 15W SECURA LAMPS	15 W	1.5 ft	13000 hours

Sankyo Denki — Japan

Black-light blue lamps (BLB)

Black-light blue lamps emit near-UV with peaks at 352 and 368 nm through deep-blue filter glass that absorbs visible light. Used for counterfeit-currency detection, inspection and analysis, and for fluorescent and stage effects. Imported from Sankyo Denki, Japan.

Type	Wattage	Length	Rated life

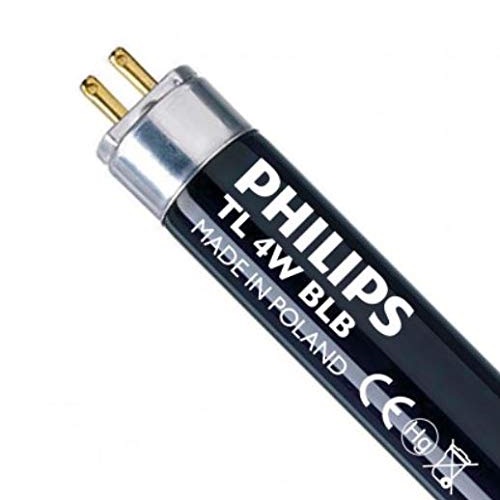

TL 4W (PHILIPS)	4 W	134.5 mm	4000 hours
F4T5 (SANKYO)	4 W	134.5 mm	3000 hours

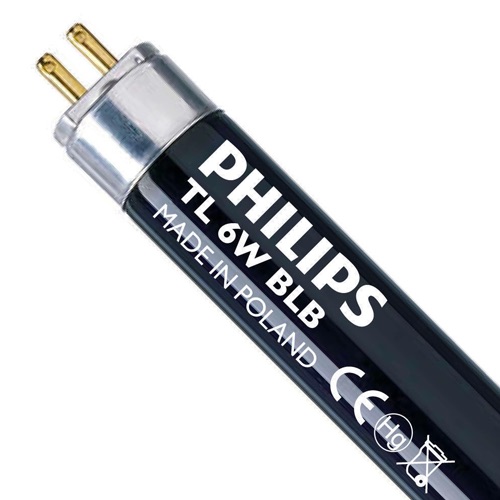

TL6W (PHILIPS)	6 W	210.5 mm	4000 hours
F6T5 (SANKYO)	6 W	210.5 mm	3000 hours
TL8W (PHILIPS)	8 W	287 mm	5000 hours
F8T5 (SANKYO	8 W	287 mm	3000 hours
F15T8 (SANKYO)	15 W	1.5 ft	4000 hours
TL-D18W (PHILIPS)	18 W	2 ft	5000 hours

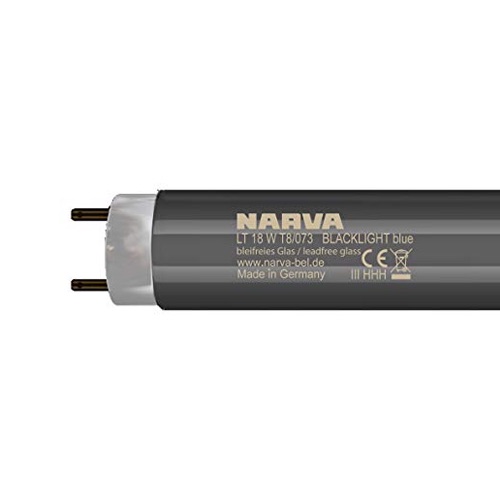

LT 18W/073 (NARVA)	18 W	2 ft	5000 hours
F30T8 (SANKYO)	30 W	3 ft	4000 hours
TL-D 36W (PHILIPS)	36 W	4 ft	12000 hours

UV-B lamps

UV-B lamps emit between 280 and 360 nm with a peak at 312 nm. Used in the transilluminators of gel-documentation systems, and extensively for weatherability testing of paints, plastics, rubber and textiles, as well as inspection and analysis light sources.

Narrow-band UV-B — Philips

Type	Wattage	Length
PL-S 9W/01/2P	9 W	167 mm
TL-20W/01	20 W	590 mm
TL-100W/01	100 W	1756 mm

Light Sources Inc., USA / LightTech, Hungary

Type	Wattage	Length
LTC 9W/G23	9 W	167 mm
LT MEDSUN 20W	20 W	590 mm
LT MEDSUN 100W	100 W	1756 mm

Broadband UV-B — Sankyo Denki, Japan

Type	Wattage	Length	UV output	Rated life
G6T5E	6 W	210 mm	1.0 W	3000 hours
G8T5E	8 W	287 mm	1.6 W	3000 hours
G15T8E	15 W	436 mm	3.1 W	4000 hours
G40T10E	40 W	1198 mm	9.6 W	5000 hours

Phototherapy lamps

Type	Wattage	Length
PL - L 18W/52 (Photo Therapy)	18 W	220.6 mm
OSRAM PL - L 18W/71 (Photo Therapy)	18 W	217 mm
TL - D - 18W/52 (Photo Therapy)	18 W	604 mm
TL 20W/52 (Photo Therapy)	20 W	604 mm
