Seoul Viosys — Korea
UV-LED mosquito traps
This innovative product uses UV LEDs to attract mosquitoes. The units are coated with a titanium-dioxide photocatalytic material which emits carbon dioxide like a human body, attracting more mosquitoes than mercury-lamp systems.

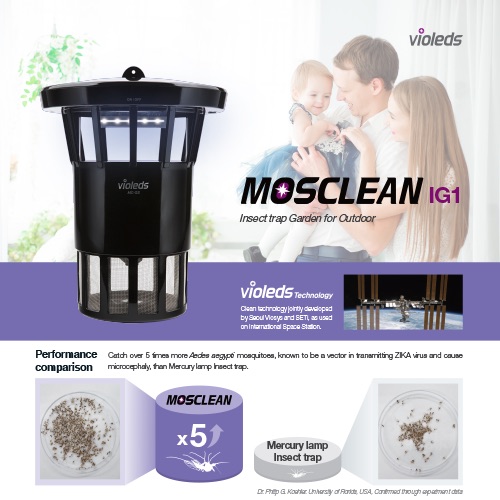

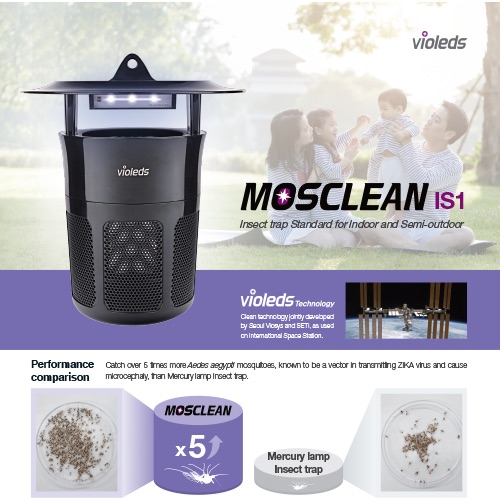

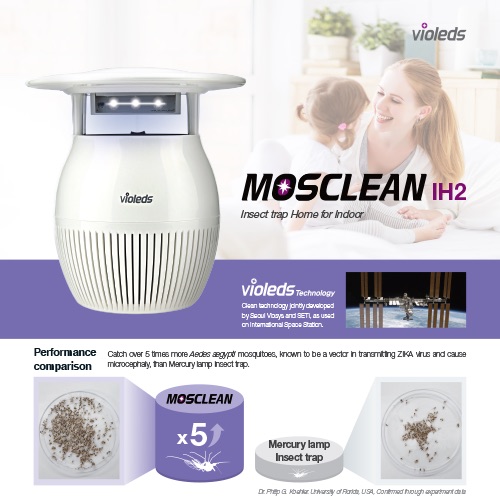

| Type | Mosclean IS1 | Mosclean IH2 | Mosclean IG1 |
|---|---|---|---|
| Location | Indoor / semi-outdoor | Indoor | Outdoor |
| Main target | Mosquito | Mosquito | Mosquito and insects |
| Mode of action | Dry-out by fan | Dry-out by fan | Dry-out by fan |
| Size | 200 (Ø) × 230 (H) mm | 190 (Ø) × 205 (H) mm | 260 (Ø) × 320 (H) mm |
| Colour | Black | Black | Black |
| Weight | 358 g | 489 g | 1580 g |
| Attractant source | Optimised UV LEDs + CO2 | Optimised UV LEDs + CO2 | Optimised UV LEDs + CO2 |
| Power | 4 W | 3.2 W | 9 W |
| Power supply | DC 12 V SMPS, 100–230 V | DC 12 V SMPS, 100–230 V | DC 12 V SMPS, 100–230 V |
| Installation | O-ring hanging / stand-alone | Stand-alone | O-ring hanging / stand-alone |
| Area covered | About 2000 sq ft | About 2000 sq ft | 1 acre (waterproof) |
